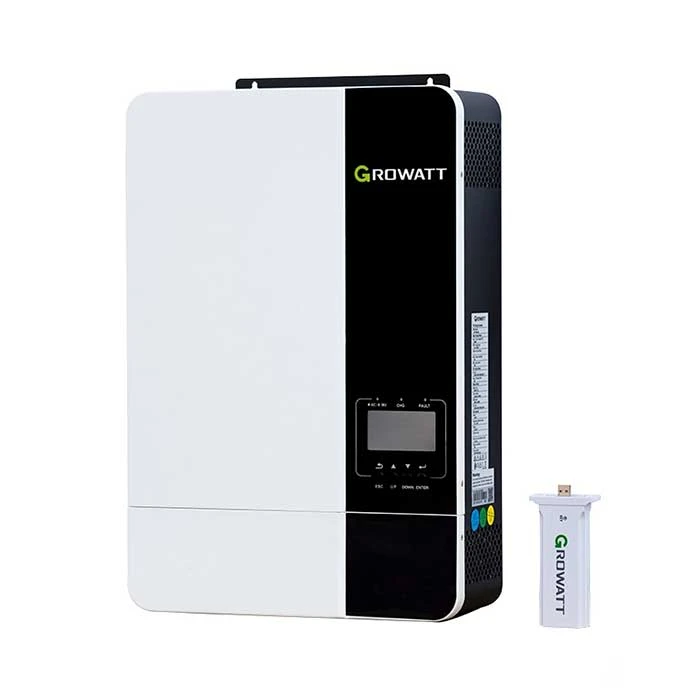

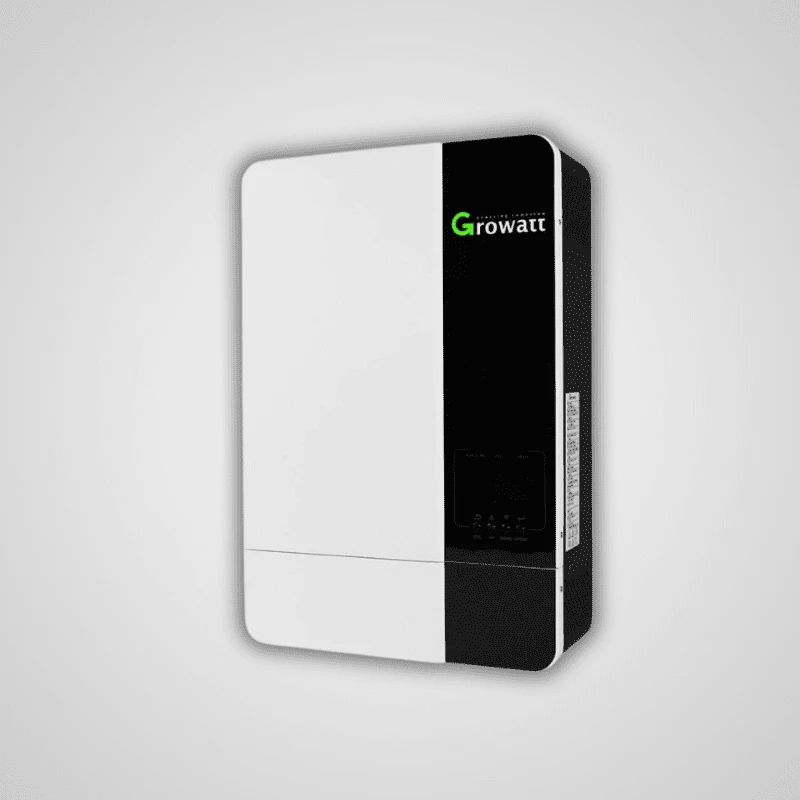

The Growatt 5000ES is a high-performance off-grid solar inverter designed for reliable home and small office solar power systems. Combining a pure sine wave inverter, MPPT solar charge controller, and UPS functionality into one compact unit, it delivers stable and efficient power for both backup and self-consumption applications.

With its 5kW output capacity, the SPF5000ES can power a wide range of household and office appliances, including motor-based devices such as refrigerators and air conditioners. Built for scalability, it supports parallel operation of up to 6 units, making it suitable for larger systems.

Growatt 5000ES multifunctional off-grid solar inverter, integrated with a MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module all in one machine. Perfect for off-grid backup power and self-consumption applications.

• 5000W – Rated Power

• 6000W – Max Solar Array Power

DIMENSIONS

• Length: 485 mm

• Width: 330 mm

• Height: 135 mm

• Weight: 12 kg

SOLAR-READY INVERTER SPECIFICATIONS

The Growatt SPF 5000 ES supports MPPT ranges of 120V~430V with a maximum 450VDC producing pure sine wave AC output.

• Battery Voltage: 48V

• Max PV Input Voltage: 450VDC

• MPPT Voltage Range: 120VDC - 430VDC

• Number of Input Strings: 1

• Max PV Input Current: 18A

PEACE OF MIND WARRANTY

• Customisable Running Modes

• Up to 6 Units Parallel

• CAN & RS485 Communication

• WiFi/GPRS Remote Monitoring

• LiFe, LiFePO4 & GEL Battery Compatible

• DC/AC Ratio up to 1.2

• 2x Peak Power Ability

• Integrated MPPT Solar Controller

OUTPUT SPECIFICATIONS

• Rated Power: 5000W

• Battery Voltage: 48VDC

• Max Parallel Units: 6

• AC Voltage Regulation: 230VAC ± 5% @ 50Hz

• Surge Power: 10 000VA

• Charge Efficiency (Peak): 93%

• Waveform: Pure Sine Wave

• Transfer Time: 10ms – 20ms

BATTERY SPECIFICATIONS

• Battery Type: Lead-Acid / Lithium

• Battery Input: 48VDC, 117A

• Max. Charge Current: 100A

• AC Input Voltage: 230VAC

• Selectable Voltage Range: 90VAC – 280VAC (+/- 0.2V)

• AC Charger Current: 80A

• Altitude: <2000m

• Operating Temperature: 0°C – 55°C

• Rated Short-time Withstand Current: ICC ≤ 6kA
